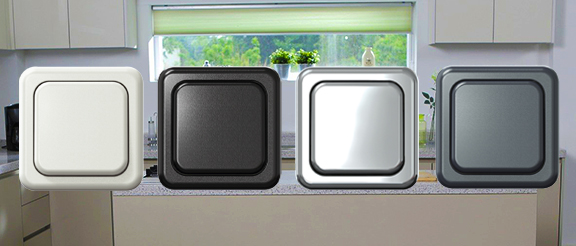

Range of small switches to install in furniture

• basis program in classic design
• 60x60mm outer dimensions including frame
• Large variety of switches and devices
• Schuko and international sockets
• USB-chargers and media jacks
• 34mm mounting depth for sockets
• 50mm hole for installation
• 6 standard colours and 3 galvanized chrome colours

Application areas:

• Interior fittings for caravans and boats;
• for the construction of furniture and of trade fair and retail commerce facilities;
• for laboratory facilities and medical technology

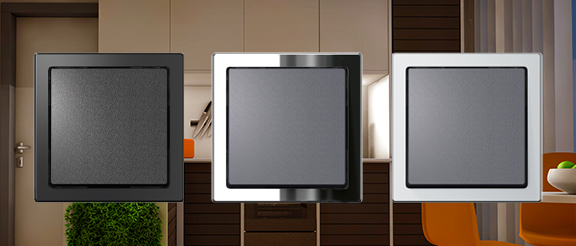

system 20.000 - the incisive design option

Perfect for installation in modern materials, surfaces and colour combinations

Properties:

• Frames with 3 galvanized chrome variants
• devices with satinized surface
• big rocker with flat angle
• Variable mounting depth
• Functionality of System 10.000

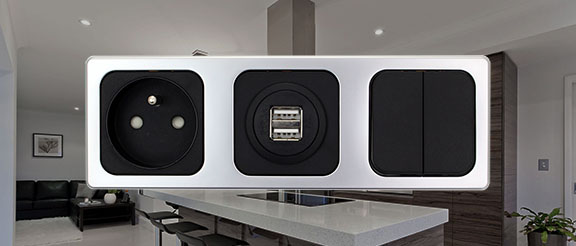

System 30.000 - the new range

Designed for installation with larger spacing in combinations

Properties:

• center hole distance 59.5mm with double and triple frames
• 50mm drill holes for mounting
• Design frames; single, double and triple
• structured surface
• New rocker pads and hinged covers with small radiuses
• Assortment range similar to System 10.000
• 10.000-series built-in elements also useable

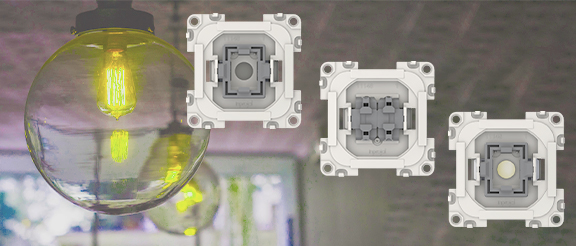

Switches, push buttons and dimmers – the basis for all design variants listed

Properties:

• 11mm-high flat switches
• Installed depth from 22mm with isolation box
• Great variety
• Switches and push buttons for 230V and 12V
• Dimmers for 230V mains as well as LED lighting
• LED dimmers for the 12V DC supply network
• Fourfold pushbutton switch and shortstroke pushbuttons

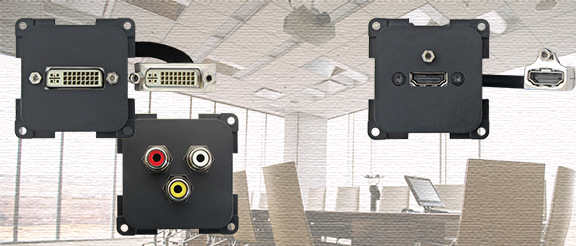

Media technology for the optimal design of workplaces and conference rooms

Developed to promote well-being in today's well-organised workplace

Portfolio:

• Media base plates to hold various Keystone jacks
• Large selection of Keystone jacks, e.g. CAT6A, USB, HDMI and many others
• Media outlets with 15cm breakout cable
• Can be integrated into the System 10.000, 20.000 and 30.000 design ranges

Snap-in sockets to click into:

• Front plates and housings
• Laboratory equipment and instrumentation
• 19-inch technic, medical technology
• Free-standing and desk lamps, office lighting

VP sockets and switches for use in profile rails

• VP Schuko and international sockets
• Switches and push buttons
• Media outlets for Keystone jacks
• USB-Charger
